Intro to SQL Anatomy of a Relational Database

Schema

The structure of a relational database is defined by its schema.

A schema defines multiple elements of a database, including:

Tables: These include specifications of columns and data types.
Indexes: These are used for faster retrieval of data.
Constraints: These are rules that ensure data integrity (such as whether a field can be null or not).

Tables

Tables are the core components of a relational database. Here’s a simple view of what database tables might look like. This looks similar to a table in a spreadsheet for a good reason - both are structured as tables composed of columns and rows:

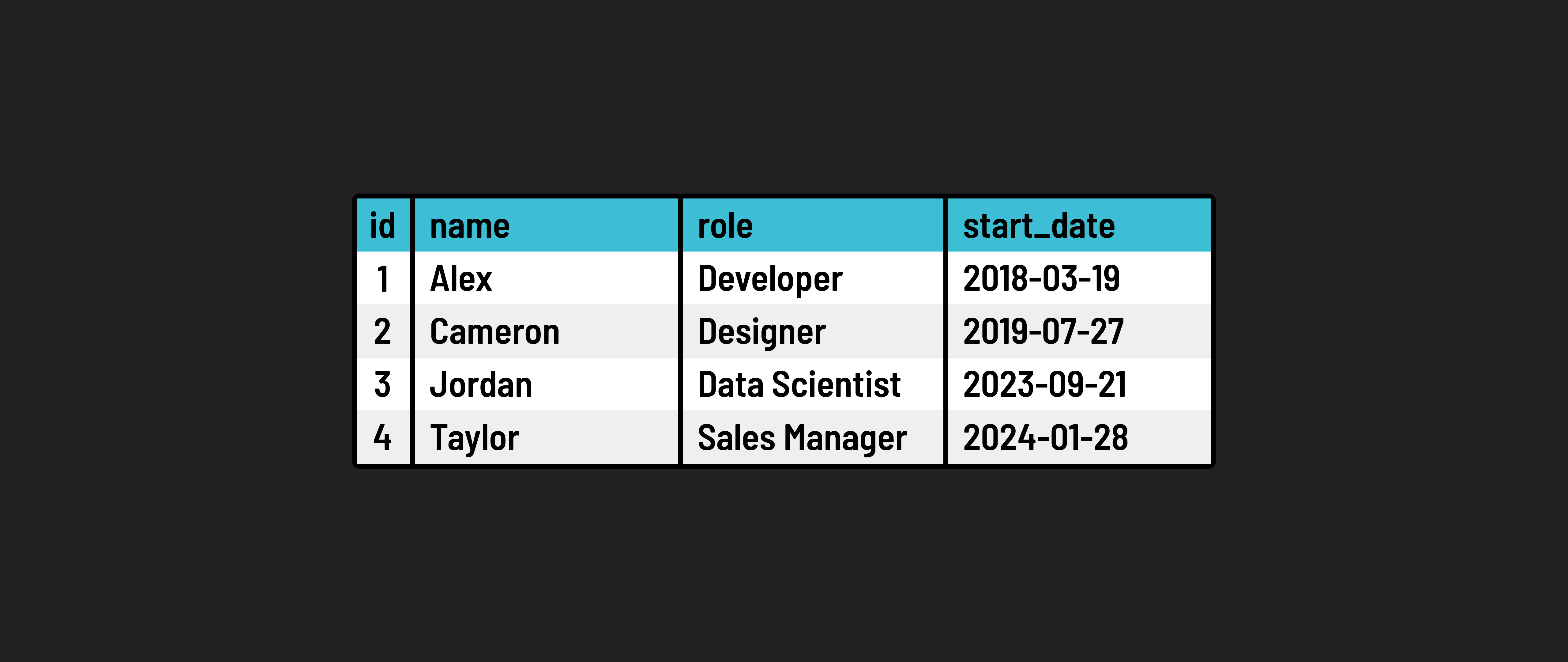

An example of a relational database table

A table in a relational database holds data for a particular data resource such as employees, which is represented in columns like name, role, and start_date.

📚 A data resource represents a real-world object or concept. It is a group of definable things, like customers, orders, reviews, movies, etc. A resource is composed of entities - each stored as a row within the table. Each column of the table holds a specific attribute. Collectively, columns describe the properties of each entity.

Columns and rows

Rows (Records)

A row in a table represents a single instance of the data entity.

For example, a particular artist is in an artists table.

TABLE: artists

id (PK)	name	nationality
1	Prince	American
2	Sir Elton John	British

TABLE: songs

id (PK)	name	year_released	artist_id (FK)
1	Tiny Dancer	1971	2
2	Little Red Corvette	1982	1
3	I Would Die 4 U	1984	1
4	Your Song	1970	2

Columns (Fields)

The columns of a table have a:

Name
Data type (all data in a column must be of the same type)
Optional constraints

The typical naming convention is usually snake_cased and singular.

PostgreSQL has many data types for columns, but common ones include:

integer
decimal
varchar (variable-length strings)
text (same as varchar)
date (does not include time)
timestamp (both date and time)
boolean

Typical constraints for a column include:

PRIMARY KEY: column, or group of columns, uniquely identify a row
REFERENCES (Foreign Key): value in a column must match the primary key in another table
NOT NULL: column must have a value; it cannot be empty (null)
UNIQUE: data in this column must be unique among all rows in the table

Primary Keys (PK) and Foreign Keys (FK)

The field that uniquely identifies each row in the table are known as that table’s primary key (PK).

Since only one type of data entity can be held in a single table, related data, for example, the songs for an artist, are stored in separate tables and linked via what is known as a foreign key (FK).
